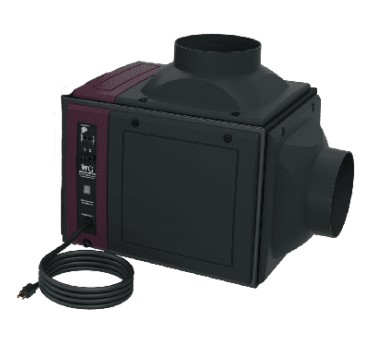

Wine Guardian WG25
Through the wall wine climate system for plug in use in the wine room. Commercial-grade, corrosion resistant components, long-term durability. The only TTW system that displays both temperature and humidity and controls temperature. Quiet and efficient operation. EasyMount one-piece wall bracket and support frame included. Capacity up to 25m³.
- Measurements device: L/D 635
x W 362 x H 401 mm, 28 kg
- Measurements packaging: L/D 840
x W 560 x H 560 mm, 33 kg
Please Note:
When building an air-conditioned wine room, all walls, floors and ceilings must be insulated with at least 8 cm insulation on the inside including a vapor barrier. Glazing to the living area should be made with two panes of insulating glass and glazing to the outside area with 3 panes of insulating glass. We recommend air conditioning to a maximum of 12-14 °C, because at lower temperatures, heat and cold bridges and other thermal conditions lead to massive additional costs (formation of condensation). We would be happy to advise you!
Weight: 28.0 kg
Total capacity: up to 25 m³ |
Watt: 455 |
Voltage/Frequency: 220-240V AC/50Hz |
Refrigerant: R134a |
Noise level (dB): 60 |
Air circulation inside (cooling): 212 m³/St. |
Air circulation outside (warm side): 212 m³/St. |
Heating resistor: optional additional function |
Heated belt: No |
Max. outside temperatur: 35°C |
Downloads
- Wine-Guardian-TTW-Datasheet-German-50Hz
- Wine-Guardian-Through-the-wall-Datasheet-50Hz
- Wine Guardian WG15 & WG25 Dimensions
- Wine-Guardian-Through-the-Wall 50Hz Spec Sheet-2014-12-12
- Wine-Guardian-Through-the-Wall Manual German-2015-11-11
- Wine-Guardian-Through-the-Wall Manual-2017-08-24 EN
- Wine-Guardian-Flyer_100dpi
- Wine Guardian WG25 (PDF)
- Wine Guardian WG25 (DWG)
