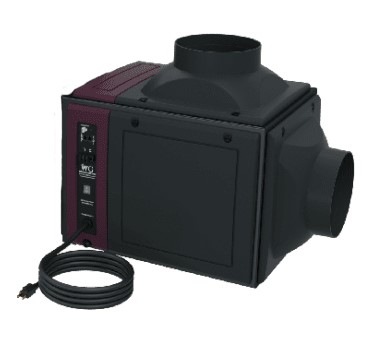

Wine Guardian WGS100 Sentinel Fan coil
The Wine Guardian WGS Split System is a unique device for air conditioning wine rooms. It can be installed in the technical room (ducted) or in the wine room to save space and offers all the advantages of a split system. Specially developed for big-sized wine rooms:
-The evaporator can be mounted in the technical room (ducted) or in the wine room
- Outdoor operating temperature from -18°C - +46°C (Standard Low Ambient)
A water drain and 230V connection is required on the indoor and outdoor unit. The device must be installed by a certified refrigeration specialist. Only available in combination with the appropriate outdoor unit.
Please Note:
When building an air-conditioned wine room, all walls, floors and ceilings must be insulated with at least 8 cm insulation on the inside including a vapor barrier. Glazing to the living area should be made with two panes of insulating glass and glazing to the outside area with 3 panes of insulating glass. We recommend air conditioning to a maximum of 12-14 °C, because at lower temperatures, heat and cold bridges and other thermal conditions lead to massive additional costs (formation of condensation). We would be happy to advise you!
Weight: 25.4 kg
| Total capacity: 100 m³ |
| Watt: 2930 |
| Voltage/Frequency: 220-240V AC/50Hz |
| Refrigerant: R134a |
| Noise level (dB): 55 |
| Air circulation inside (cooling): 750 m³/St. |
| Heating resistor: optional additional function |
| Heated belt: No |
| Max. outside temperatur: 35°C |
