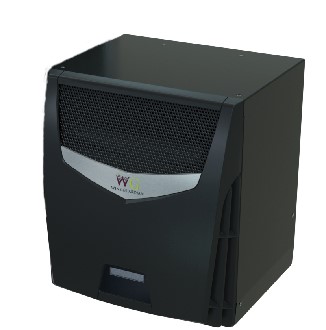

Wine Guardian WGS25 Sentinel Fan coil
The Wine Guardian® ductless split wine-cellar cooling unit is an entirely new, cutting edge system. It’s versatile enough for either surface mounting or space-saving through-the-wall mounting, while providing the flexibility of a split system. The Ductless Split unit is ideal for small wine cellar owners who have no room for mechanical equipment or are unable to accommodate ductwork. The Wine Guardian Ductless split offers high ambient and optional low ambient protection in a sleek, newly styled condensing unit. The condensing unit provides a smaller footprint with the ability to mount to a variety of structures:
-Fan-coil can be mounted through-the-wall or surface mount— exclusive to this unit
-Condensing unit operating capacities from
-0°F/-18°C to 115°F/46°C with standard low ambient protection
Both inner and outer units require water drain and 230V electricity. The unit has to be installed through a certified refrigeration specialist. Only in combination with the appropriate outside unit available.
Please Note:
When building an air-conditioned wine room, all walls, floors and ceilings must be insulated with at least 8 cm insulation on the inside including a vapor barrier. Glazing to the living area should be made with two panes of insulating glass and glazing to the outside area with 3 panes of insulating glass. We recommend air conditioning to a maximum of 12-14 °C, because at lower temperatures, heat and cold bridges and other thermal conditions lead to massive additional costs (formation of condensation). We would be happy to advise you!
Weight: 11.3 kg
| Total capacity: up to 25 m³ |
| Watt: 785 |
| Voltage/Frequency: 220-240V AC/50Hz |
| Refrigerant: R134a |
| Noise level (dB): 55 |
| Air circulation inside (cooling): 240 m³/Std. |
| Heating resistor: optional additional function |
| Heated belt: No |
| Max. outside temperatur: 35°C |
