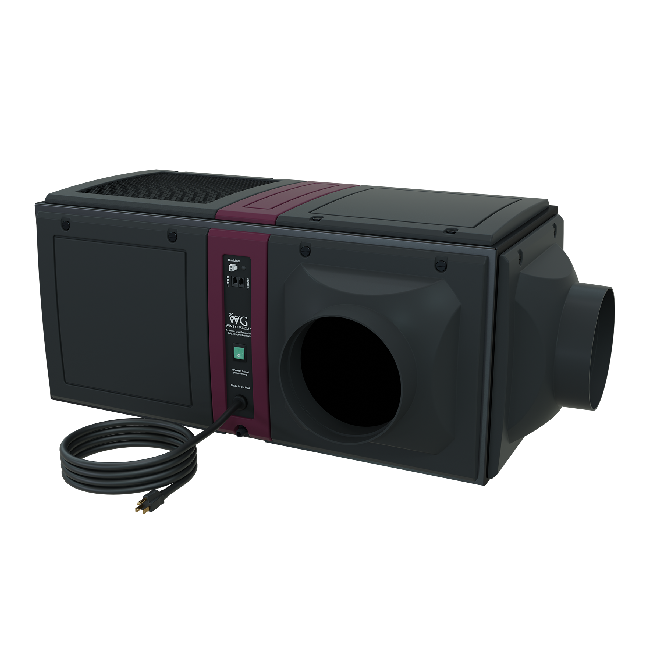

Wine Guardian WG40 Sentinel
Wine Guardian® ducted wine cellar cooling units are the quietest, most versatile cooling systems on the market. They provide optimal temperature and humidity control for both commercial and residential cellars with a design that allows for easy installation. Our units combine optimal control with the most energy efficiency in the industry. With Wine Guardian ducted systems you create the perfect environment for preserving your fine wine— even though the system is hidden from view.
Benefits of external ducting:
-Unit is located outside the wine cellar
-Quiet with virtually no vibration in the cellar
-Easier to service
-Better air distribution and temperature control than through-the-wall or ductless split systems
-No visible mechanical equipment in the wine cellar
-Flexibility in location and cellar design
Please Note:
When building an air-conditioned wine room, all walls, floors and ceilings must be insulated with at least 8 cm insulation on the inside including a vapor barrier. Glazing to the living area should be made with two panes of insulating glass and glazing to the outside area with 3 panes of insulating glass. We recommend air conditioning to a maximum of 12-14 °C, because at lower temperatures, heat and cold bridges and other thermal conditions lead to massive additional costs (formation of condensation). We would be happy to advise you!
Weight: 36.3 kg
| Total capacity: 40 m³ |
| Watt: 755 |
| Voltage/Frequency: 220-240V AC/50Hz |
| Noise level (dB): 60 |
| Air circulation inside (cooling): 451 m³/St. |
| Air circulation outside (warm side): 451 m³/St. |
| Heating resistor: optional additional function |
| Heated belt: No |
| Max. outside temperatur: 35°C |
