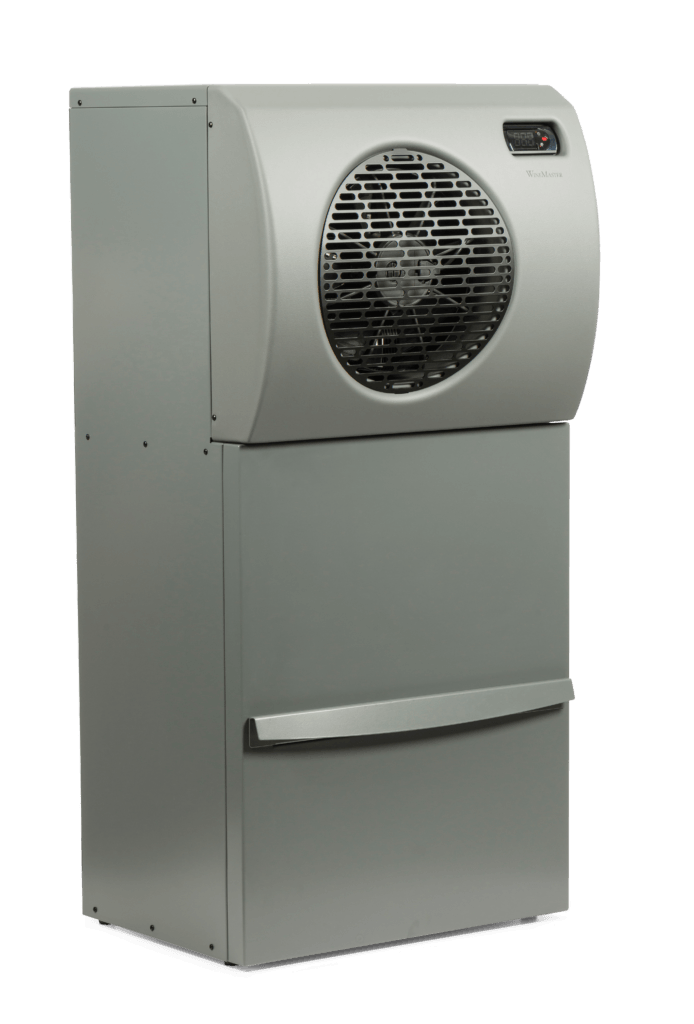

WineMaster WineIN50X
WineMaster offers an
“INTEGRATED” version of the air conditioner with a different design and
excellent efficiency. New materials and the “Energy Saving System” make it easy
to install.
The advantages of this air
conditioner:
- Keeps cellars at a constant
temperature of between 8 and 18 °C
- Humidity control: excess
humidity is condensed and evacuated towards the outside
- Rubber shock absorbers are
incorporated, creating an anti-vibration system
- Economical operation enables
up to 30% more energy savings compared to Standard cooling devices
- Easy to install: pipes open
out onto the back in a staggered fashion of the device including suction and a
blowing nozzle
- Easy upkeep: just a filter
that needs to be changed once a year
- 2 rotation speed settings
for the cellar-side fan
- “Energy Saver Motor” for the
vent, a rotary compressor and a rection turbine for considerable energy savings
- Operates silently thanks to the use of new materials
- Measurements device: L/D 500
x W 428 x H 1044 mm, 53 kg
Please Note:
When building an air-conditioned wine room, all walls, floors and ceilings must be insulated with at least 8 cm insulation on the inside including a vapor barrier. Glazing to the living area should be made with two panes of insulating glass and glazing to the outside area with 3 panes of insulating glass. We recommend air conditioning to a maximum of 12-14 ° C, because at lower temperatures, heat and cold bridges and other thermal conditions lead to massive additional costs (formation of condensation). We would be happy to advise you!
Weight: 53.0 kg
Total capacity: bis 50 m³ |
Watt: 1200 W to 15°C |
Voltage/Frequency: 220-240V AC/50Hz |
Refrigerant: R407 C |
Noise level (dB): 50 |
Air circulation inside (cooling): 430 m³/St. |
Air circulation outside (warm side): 450 m³/St. |
Heating resistor: 500 W |
Heated belt: No |
Max. outside temperatur: 35°C |
