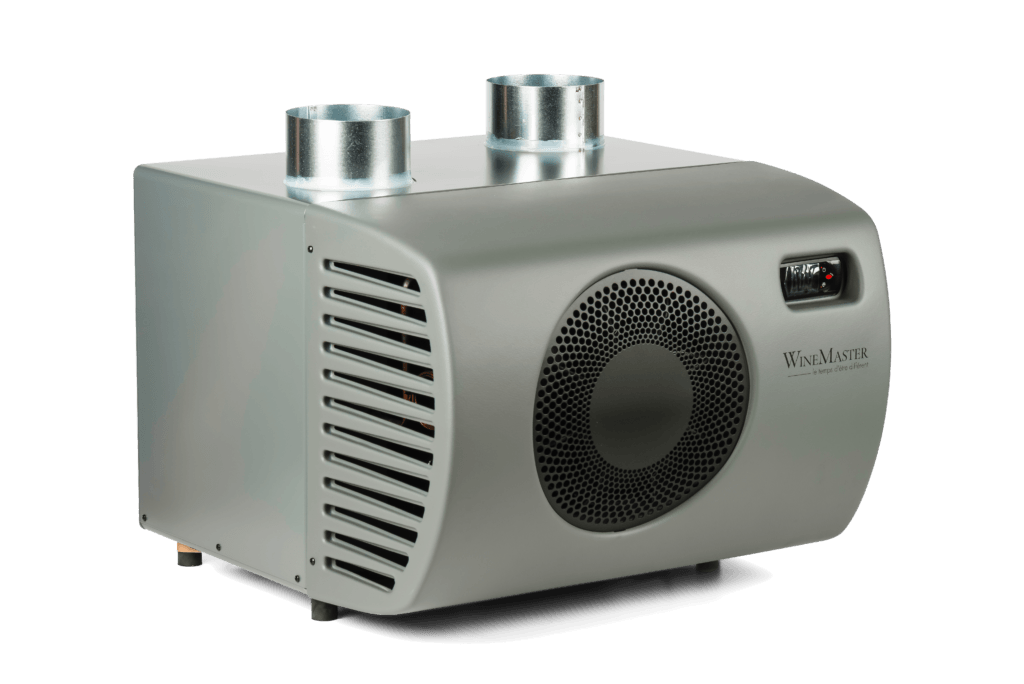

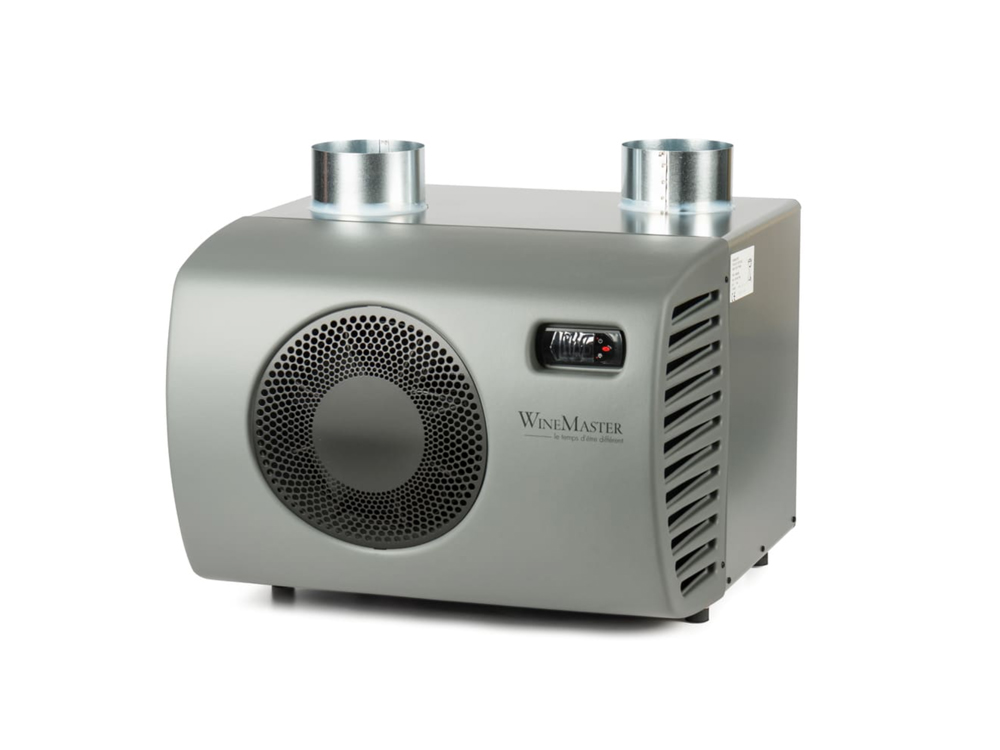

WineMaster WineIN25X
WineMaster offers an
“INTEGRATED” version of the air conditioner with a different design and ever
more improved efficiency. WINE IN25 is totally discreet, it allows you to air
condition up to 25m³, and it has numerous advantages such as being silent and
saving energy.
The advantages of this air
conditioner:
- Keeps cellars at a constant
temperature of between 8 and 18 °C
- Humidity control: excess
humidity is condensed and evacuated towards the outside
- Rubber shock absorbers are
incorporated, creating an anti-vibration system
- Controlled power consumption
thanks to the ESM fan on the evaporator side
- Economical operation enables
up to 30% more energy savings compared to Standard cooling devices
- Easy to install: ducts come
out on top
- Easy upkeep: just a filter
that needs to be changed once a year
- 2 rotation speed settings
for the cellar-side fan
- The fan is equipped with
«Energy Saver Motor» technology
- Operates silently thanks to
the use of new materials
- New accessory kit: saves time and provides optimal insulation

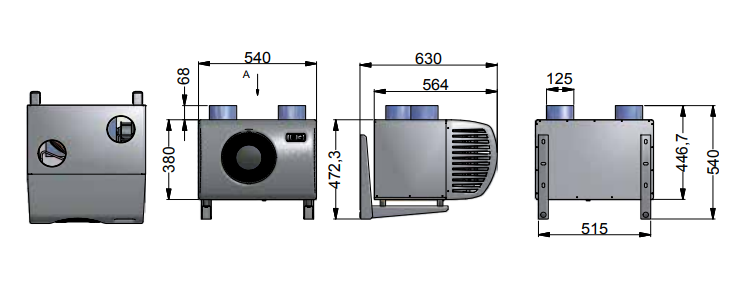

- Measurements device: L/D 630
x W 540 x H 540 mm, 35 kg
Please Note:

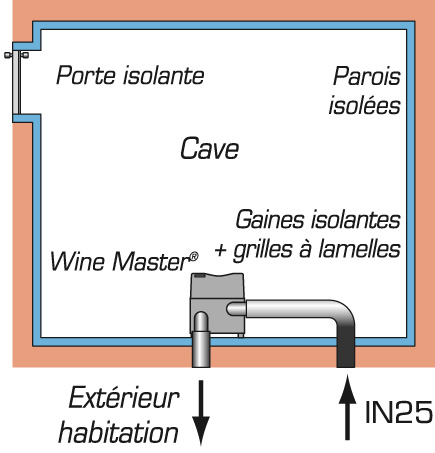

When building an air-conditioned wine room, all walls, floors and ceilings must be insulated with at least 8 cm insulation on the inside including a vapor barrier. Glazing to the living area should be made with two panes of insulating glass and glazing to the outside area with 3 panes of insulating glass. We recommend air conditioning to a maximum of 12-14 ° C, because at lower temperatures, heat and cold bridges and other thermal conditions lead to massive additional costs (formation of condensation). We would be happy to advise you!
Weight: 35.0 kg
Total capacity: up to 25 m³ |
Watt: 500 W - 15°C |
Voltage/Frequency: 220-240V AC/50Hz |
Refrigerant: R449 A |
Noise level (dB): 43 |
Air circulation inside (cooling): 96 - 198 m³/St. |
Air circulation outside (warm side): 450 m³/St. |
Heating resistor: 250 W |
Heated belt: No |
Max. outside temperatur: 35°C |
