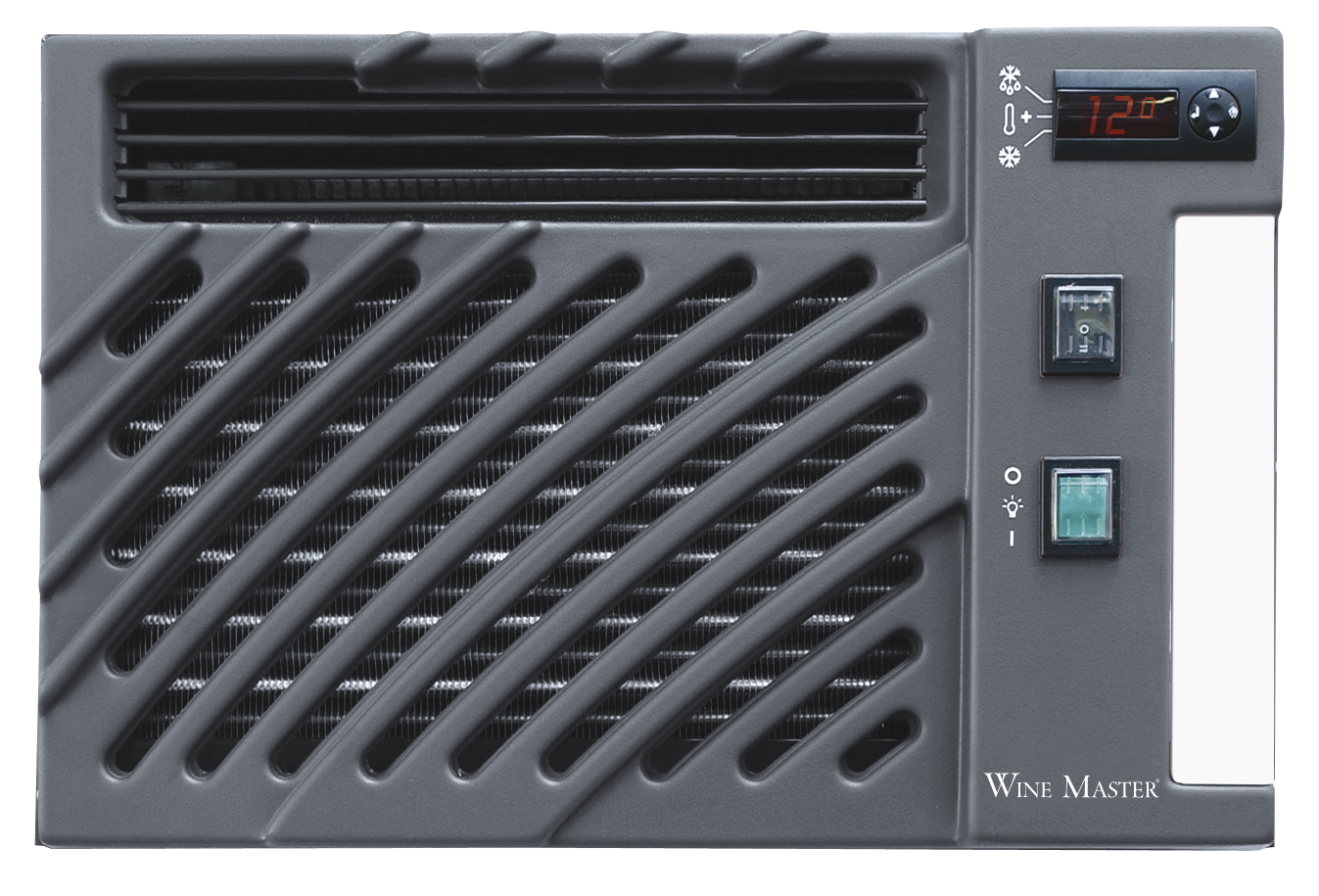

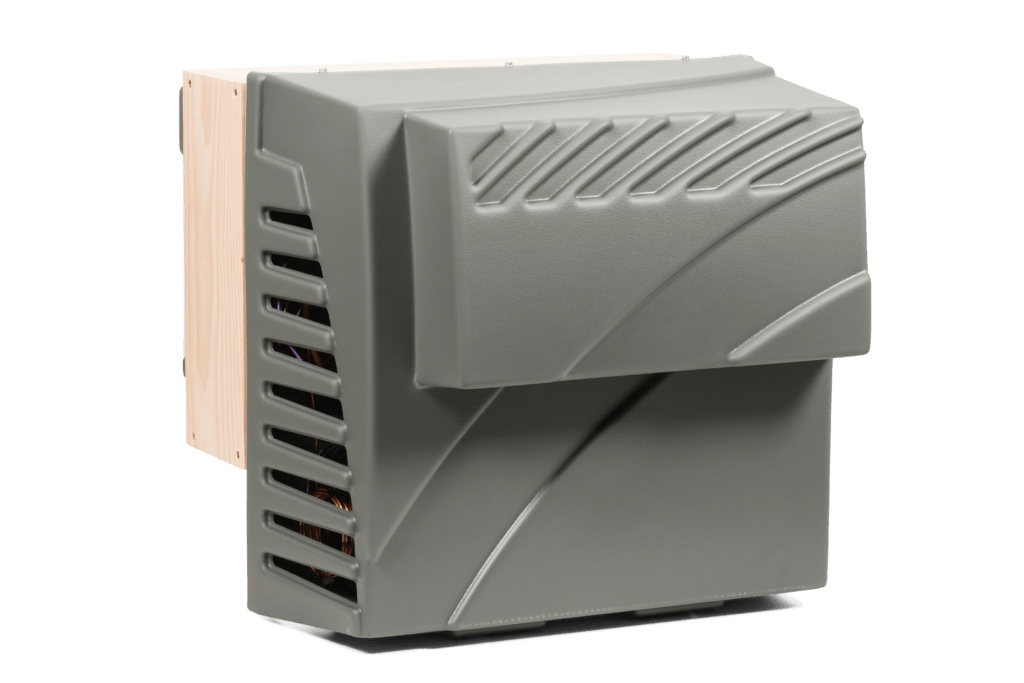

WineMaster WineC50SRX
The Wine C50SR model belongs

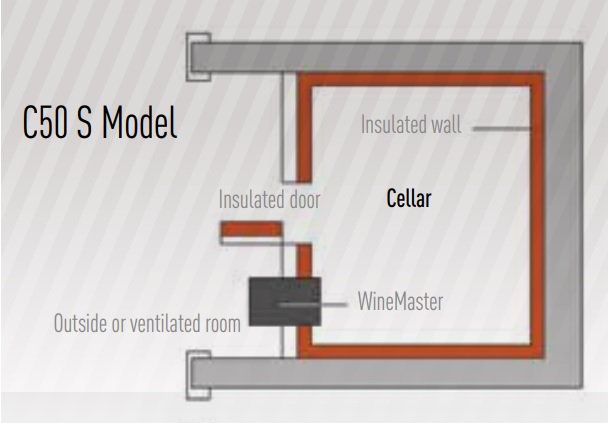

to our family of inbuilt solutions. It is installed in an outer partition
wall and will turn any properly insulated room into a real wine cellar. What
a joy to buy wines and watch them age.
The advantages of this air
conditioner:
- Keeps cellars at a constant
temperature of between 8 and 18 °C
- Humidity control: excess
humidity is condensed and evacuated towards the outside
- Rubber shock absorbers are
incorporated, creating an anti-vibration system
- Dimensions that make the
product able to adapt to different rooms (store room, attic...)
- Controlled power consumption
thanks to the reaction turbine on the condenser side
- Economical operation enables
up to 30% more energy savings compared to Standard cooling devices
- Warm-up function
- Easy to install, provided
with a wooden frame
- Easy upkeep: just a filter
that needs to be changed once a year
- 2 rotation speed settings
for the cellar-side fan
- The fan is equipped with
«Energy Saver Motor» technology
- Operates silently thanks to
the use of new materials
- Wines are protected from
excessive light thanks to an integrated night light
- Equipped with a heating belt
that provides protection in the event of difficult weather conditions (such as
winter)
- Specially designed for very
cold areas, this air condition should be embedded into an outside al

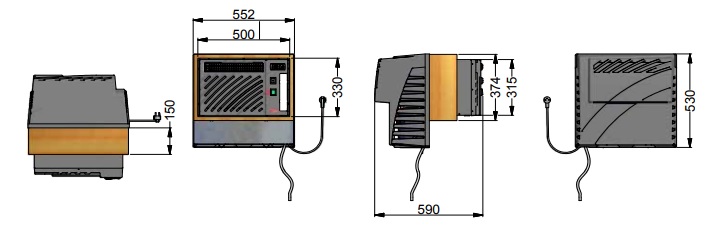

- Measurements device: L/D 590
x W 552 x H 530 mm, 45 kg
Please Note:
When building an air-conditioned wine room, all walls, floors and ceilings must be insulated with at least 8 cm insulation on the inside including a vapor barrier. Glazing to the living area should be made with two panes of insulating glass and glazing to the outside area with 3 panes of insulating glass. We recommend air conditioning to a maximum of 12-14 °C, because at lower temperatures, heat and cold bridges and other thermal conditions lead to massive additional costs (formation of condensation). We would be happy to advise you!
Weight: 45.0 kg
Total capacity: bis 50 m³ |
Watt: 550 W to 15°C |
Voltage/Frequency: 220-240V AC/50Hz |
Refrigerant: R407 C |
Noise level (dB): 51 |
Air circulation inside (cooling): 400 - 500 m³/St. |
Air circulation outside (warm side): 350 - 550 m³/St. |
Heating resistor: 500 W |
Heated belt: Yes |
Max. outside temperatur: 35°C |
